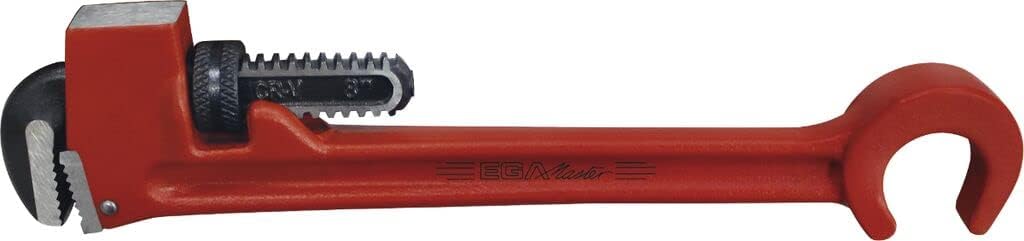

Refinery Pipe and Valve Wrench 10 Inch – EGA Master 57581
EGA Master 57581 Refinery Pipe and Valve Wrench 10 Inch is a professional pipe and valve wrench designed for demanding applications including refineries, petrochemical companies, and oil and gas pipelines. The 10-inch wrench is designed to allow the operator to work with a range of different valves using a single tool. It is part of our range of industrial spanners and wrenches for professional maintenance and industrial applications.

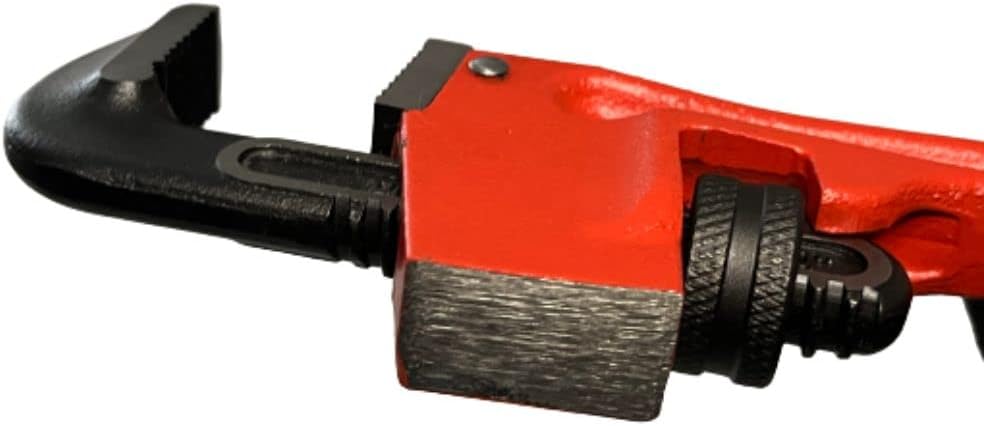

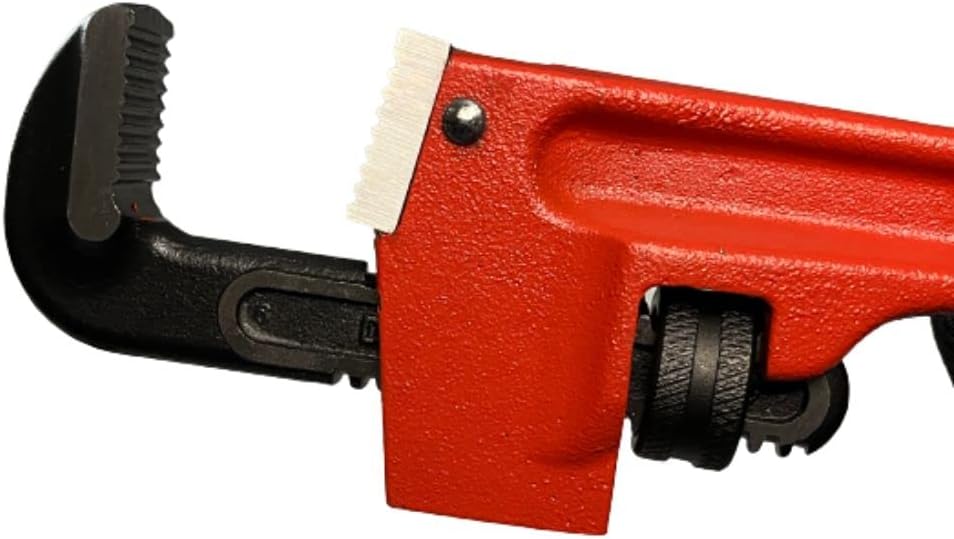

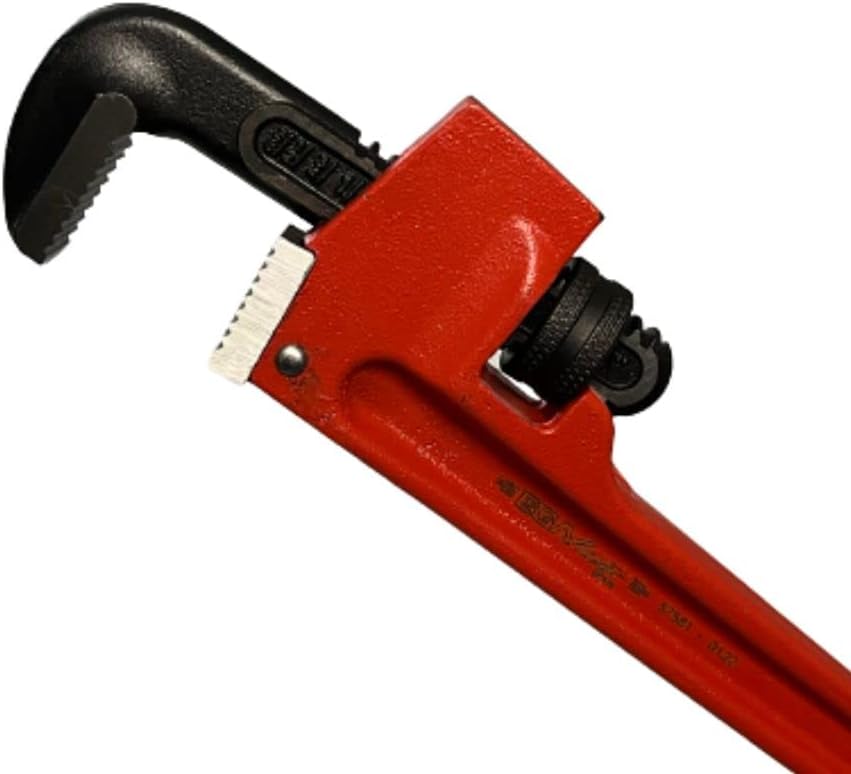

The wrench features a forged movable jaw with a ratchet function for quick operation, replaceable twice-hardened alloy steel jaws, and a precision-milled biased tooth design intended to maximize gripping strength and tool life. A knurled adjustment nut supports one-handed operation, while graduations on the hook jaw indicate the approximate opening for different pipe sizes.
Model 57581 has a 10-inch size, a pipe capacity of 1/8–1 1/2 inches, a 1/2-inch valve spanner size and a listed weight of 0.8 kg.
Delivery: All across Saudi Arabia
✔ Warranty
Availability: In stock for immediate and bulk supply
Delivery in Saudi Arabia: Fast nationwide shipping including Dammam, Riyadh, Jeddah & industrial cities
Warranty:As per EGA master standard
Pack Size: 1 Each
Product Identification
Brand: EGA Master
Product: Refinery Pipe and Valve Wrench
Model / Product Code: 57581
Size: 10 inch
EAN: 8412783575811

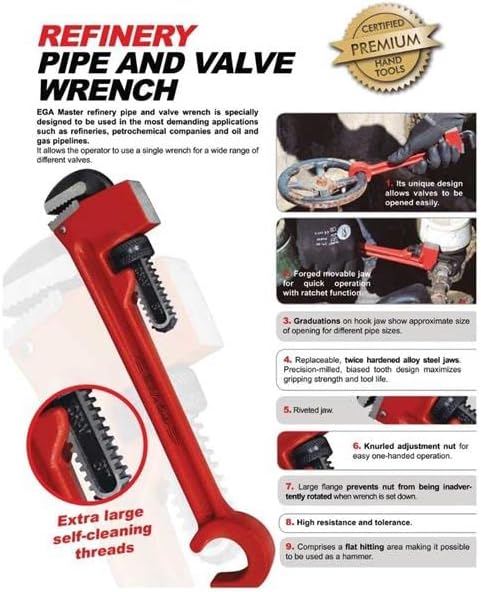

Features of Refinery Pipe and Valve Wrench 10 Inch:
- EGA Master model 57581
- 10-inch refinery pipe and valve wrench
- Designed for demanding refinery, petrochemical and oil & gas pipeline applications
- Forged movable jaw with ratchet function for quick operation
- Replaceable, twice-hardened alloy steel jaws
- Precision-milled, biased tooth design for gripping strength and tool life
- Riveted jaw construction
- Graduations on the hook jaw indicate approximate opening for different pipe sizes
- Knurled adjustment nut for easier one-handed operation
- Large flange helps prevent unintended rotation of the adjustment nut when the wrench is set down
- Flat hitting area allows the tool to be used as a hammer, according to the manufacturer
- High resistance and tolerance
- Designed to allow operation of a range of different valves with one wrench

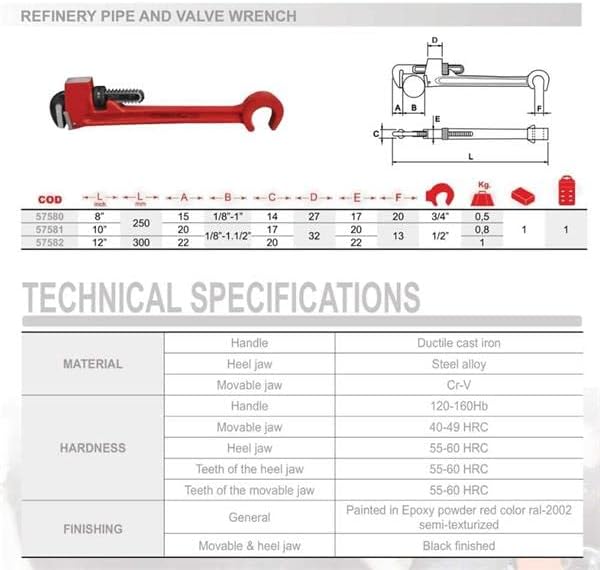

Technical Specifications of Refinery Pipe and Valve Wrench 10 Inch:
| Brand | EGA Master |
| Product Type | Refinery pipe and valve wrench |
| Model / Product Code | 57581 |
| Size | 10 inch |
| Pipe Capacity | 1/8–1 1/2 inch |
| Valve Spanner Size | 1/2 inch |
| Weight | 0.8 kg |
| Handle Material | Ductile cast iron |
| Heel Jaw Material | Steel alloy |
| Movable Jaw Material | Cr-V |
| Handle Hardness | 120–160 HB |
| Movable Jaw Hardness | 40–49 HRC |
| Heel Jaw Hardness | 55–60 HRC |
| Heel Jaw Teeth Hardness | 55–60 HRC |
| Movable Jaw Teeth Hardness | 55–60 HRC |
| Handle Finish | Red RAL-2002 epoxy powder paint, semi-textured |
| Movable & Heel Jaw Finish | Black finished |
Applications of Refinery Pipe and Valve Wrench 10 Inch:
- Oil and gas pipelines
- Oil refineries
- Petrochemical companies
- Refinery maintenance
- Pipeline maintenance
- Industrial valve operation
Why Chose Refinery Pipe and Valve Wrench 10 Inch:
The EGA Master refinery pipe and valve wrench is designed around several features intended for demanding industrial valve and pipe applications. Its forged movable jaw incorporates a ratchet function for quick operation, while the adjustable jaw design allows the wrench to work across a range of pipe sizes. Graduations on the hook jaw indicate the approximate opening for different pipe sizes.
The replaceable, twice-hardened alloy steel jaws and precision-milled biased tooth design are specified by EGA Master to maximize gripping strength and tool life. The knurled adjustment nut supports one-handed operation, while the large flange helps prevent unintended adjustment when the wrench is set down.
Use It Along With:
Valve and pipe work in refineries and process plants rarely uses one tool alone. Maintenance teams usually order these with the refinery pipe and valve wrench:
- Industrial safety gloves: grip and hand protection when operating stiff valve handwheels and working on oily pipework.
- Heavy-duty wiping cloths: to clean grease and grime off valve stems, fittings and wrench jaws before gripping.
- Pipe wrenches 12”: for larger diameter pipe and threaded fittings beyond this wrench’s capacity.
- Adjustable spanners: for hex nuts and bolts on valve bodies, flanges and fittings.
- Non-sparking tools: required in place of standard steel tools in flammable or explosive atmospheres.
- Safety glasses: eye protection against debris and line residue during valve and pipe maintenance.
Need the full kit for a shutdown or maintenance programme? Request a combined quote and we’ll supply tools, PPE and MRO consumables on one order.
FAQs
What is the EGA Master 57581 refinery pipe and valve wrench?
The EGA Master 57581 is a 10-inch refinery pipe and valve wrench designed for demanding applications including refineries, petrochemical companies and oil and gas pipelines. RS Components
What size is the EGA Master 57581?
The EGA Master 57581 is a 10-inch refinery pipe and valve wrench. EgaMaster
What is the pipe capacity of the EGA Master 57581?
The manufacturer’s technical catalogue lists a pipe capacity of 1/8 to 1 1/2 inches for model 57581. EgaMaster
What is the valve spanner size of the EGA Master 57581?
The manufacturer lists a 1/2-inch valve spanner size for model 57581. EgaMaster
What is the model number of the 10-inch EGA Master refinery pipe and valve wrench?
The model/product code is 57581. EgaMaster
What industries can use the EGA Master 57581?
EGA Master specifically identifies the refinery pipe and valve wrench for applications such as refineries, petrochemical companies and oil and gas pipelines. RS Components
Does the EGA Master 57581 have a ratchet function?
Yes. The manufacturer describes the wrench as having a forged movable jaw with a ratchet function for quick operation. RS Components
Are the jaws replaceable on the EGA Master 57581?
Yes. EGA Master specifies replaceable, twice-hardened alloy steel jaws for this refinery pipe and valve wrench. RS Components
What is the weight of the EGA Master 57581?
The manufacturer’s technical catalogue lists the weight of model 57581 as 0.8 kg. EgaMaster
Where can I buy an EGA Master 57581 refinery pipe and valve wrench in Saudi Arabia?
Astro Global Solutions supplies the EGA Master 57581 refinery pipe and valve wrench in Saudi Arabia. Customers can contact Astro Global Solutions for availability, pricing, bulk requirements and product documentation.
