Automatic Aerosol Fire Extinguisher
0,00 ر.س
Automatic aerosol fire extinguishers provide instant, self-activating suppression inside electrical cabinets, control panels, and server enclosures. No external power or manual intervention required. The condensed aerosol agent is non-conductive and safe for energized equipment, making it the preferred choice for industrial and commercial installations. Available with DIN rail (35mm) or adhesive tape mounting for flexible deployment across cabinet types.
Delivery: All across Saudi Arabia
✔ Warranty
Brand: Available from leading manufacturers
Availability: In stock (subject to order confirmation)
Delivery in Saudi Arabia: Fast nationwide shipping including Dammam, Riyadh, Jeddah & industrial cities
Warranty: As per standard warranty policy
Pack Size: 1 Piece
Features of Automatic Aerosol Fire Extinguisher:
- Automatic Activation: Heat-sensitive trigger releases fire-suppressing aerosol when temperatures rise
- Electrical Fire Safe: Non-conductive agent—perfect for sensitive electronic equipment

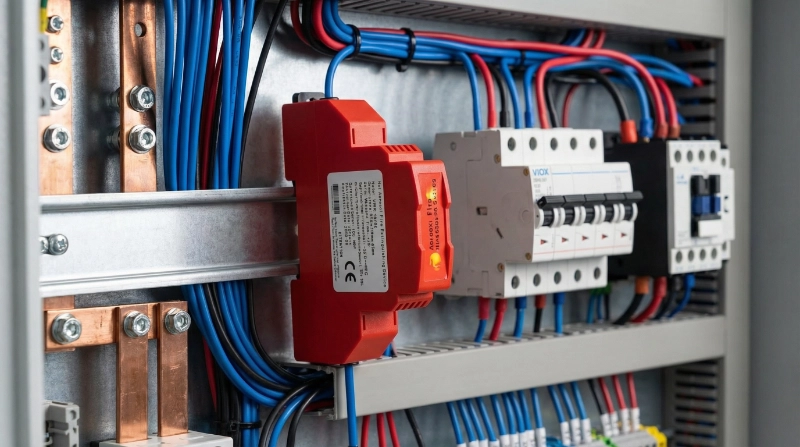

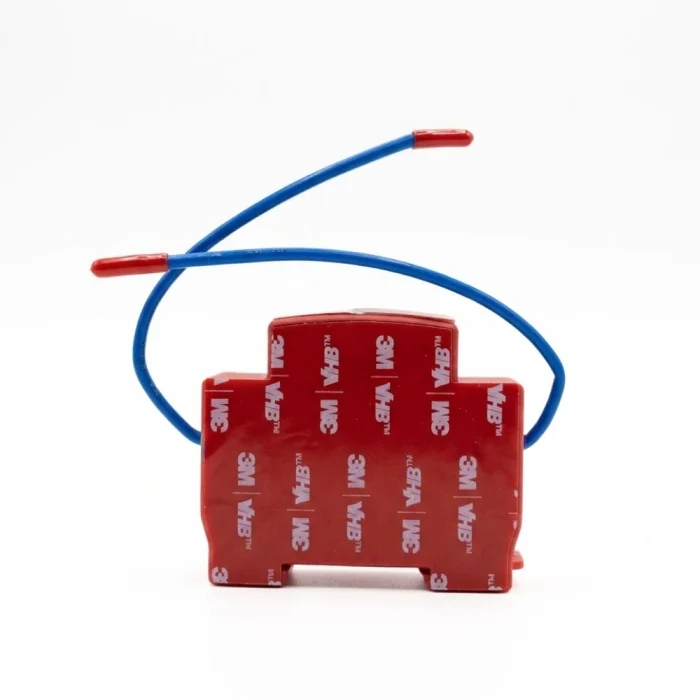

- Flexible Installation: Compatible with DIN rail mounting or easy adhesive tape application
- Compact & Space-Saving: Fits inside tight enclosures without interfering with wiring
- Maintenance-Free Design: No external power supply or complex setup required
- Fast Fire Suppression: Quickly extinguishes Class A, B, and electrical fires
Technical Specifications:
| Type | Automatic aerosol fire suppression device |
| Activation Method | Heat / thermal trigger (self-activating) |
| Activation Temperature | ~100°C – 170°C |
| Extinguishing Agent | Condensed aerosol (solid → fine particles) |
| Discharge Time | ~2 – 10 seconds |
| Installation | DIN rail (35mm) / adhesive tape mounting |
How Condensed Aerosol Suppression Works
Unlike traditional extinguishers that flood a space with gas or powder, a condensed aerosol fire extinguisher works through a chemical chain-breaking mechanism. When the internal cabinet temperature reaches the activation threshold, the solid aerosol compound inside the unit undergoes a rapid reaction and releases an ultra-fine cloud of potassium-based particles. These particles interfere directly with the free radicals that sustain combustion – collapsing the fire chemistry at a molecular level and extinguishing the fire within seconds.
Because the agent is released as extremely fine dry particles rather than a pressurized liquid or gas, it fills the enclosed cabinet space thoroughly without requiring any piping, nozzles, or cylinder pressure. There is no wet residue, no pressure blast, and no risk of electrical conductivity making it uniquely suited for electrical enclosures where conventional suppression methods would cause as much damage as the fire itself.
What is the difference between an aerosol fire extinguisher and a regular fire extinguisher?
A regular fire extinguisher is a manually operated device. A person must be present to pull the pin, aim, and discharge it. An automatic aerosol fire extinguisher is self-activating. It sits permanently inside the cabinet and triggers on its own when heat reaches the set threshold, with no human intervention needed. This makes it ideal for unmanned locations, remote installations, and enclosed spaces where a person cannot physically access the fire in time.
In terms of agent, traditional extinguishers use water, CO2, dry powder, or clean agent gas. Aerosol units use a condensed solid compound that releases suppression particles chemically with no pressurized cylinder, no piping, and no residue on electronics.
Aerosol vs Traditional Fire Suppression
Buyers comparing options often ask how aerosol suppression differs from CO2, FM-200, or dry powder systems. Here is a direct comparison for electrical cabinet applications:
No pressurized cylinder: aerosol units contain a solid compound, eliminating the pressure hazard and storage requirements of gas-based systems.
No cleanup required: Unlike dry powder which leaves heavy residue on components, condensed aerosol leaves minimal trace and does not damage sensitive electronics.
Safe for energized equipment:
CO2 discharge can cause thermal shock and pressure damage; aerosol does not.
No piping or nozzles: the unit is fully self-contained, making it far simpler and cheaper to install than FM-200 or Novec 1230 piped systems.
Lower total cost: No cylinder refill cycles, no annual pressure testing, and no complex installation.
How long do aerosol fire extinguishers last?
Shelf life and service life vary by manufacturer and model. Most condensed aerosol suppression units are rated for 5 to 10 years of service life from the date of manufacture when stored and installed under normal conditions. This makes them a very low-maintenance option compared to gas cylinders that require periodic pressure testing and refilling. Always check the specific TDS or product label for the rated service life of the unit you are purchasing.
Applications of Automatic Aerosol Fire Extinguisher:
- Electrical Control Panels – Protects switchgear, breakers, and wiring inside control cabinets
- Distribution Boards (DBs) – Prevents fire spread in power distribution systems
- Server Racks & Data Cabinets – Safeguards IT equipment and critical data infrastructure
- Telecom Enclosures – Ideal for BTS cabinets and communication systems
- Industrial Automation Cabinets – Protects PLCs, drives, and control units
- Battery Storage Systems – Suitable for UPS and energy storage cabinets
- Solar Power Inverters – Fire protection for PV inverter enclosures
- EV Charging Stations – Adds safety inside charging control units
- Oil and Gas RTU and Substation Cabinets — Unmanned remote locations where automatic activation is critical
- Marine & Offshore Electrical Panels – Compact protection for confined electrical spaces
- Elevator Control Panels – Prevents electrical fire risks in lift systems
FAQs
Is an aerosol fire extinguisher safe for electrical panels and server cabinets?
Yes, condensed aerosol fire suppression systems are non-conductive and suitable for energized electrical equipment. They are commonly used inside electrical control panels, server racks, telecom enclosures, PLC cabinets, and industrial automation systems where conventional extinguishers may damage sensitive electronics.
Where can automatic aerosol fire extinguishers be used in Saudi Arabia?
These systems are widely used across industrial and commercial facilities in Saudi Arabia including electrical cabinets, data centers, substations, telecom systems, battery storage units, solar inverter enclosures, marine electrical panels, and oil & gas remote installations.
How long do automatic aerosol fire extinguishers last?
Most condensed aerosol fire suppression units have an operational life of approximately 5 to 10 years depending on the manufacturer and installation conditions. They are considered low-maintenance compared to gas cylinder-based suppression systems that require periodic pressure testing and refilling.
What are the advantages of condensed aerosol fire suppression systems?
Condensed aerosol suppression systems are compact, fast-acting, non-conductive, and suitable for confined electrical spaces. They do not require pressurized cylinders, complex piping, or extensive maintenance, making them a cost-effective fire protection solution for industrial and commercial applications.
Can aerosol fire extinguishers be installed inside control panels?
Yes, automatic aerosol fire extinguishers are specifically designed for enclosed installations such as switchgear panels, distribution boards, PLC cabinets, and electrical enclosures. Their compact design allows installation using DIN rail mounting or adhesive mounting methods.
Do you supply automatic aerosol fire extinguishers across Saudi Arabia?
Yes, Astro Global Solutions supplies automatic aerosol fire extinguishers across Riyadh, Dammam, Jeddah, Jubail, Al Khobar, Yanbu, and industrial cities throughout Saudi Arabia. We support industrial buyers, contractors, OEMs, and facility operators with product availability and technical assistance.
Are automatic aerosol fire extinguishers suitable for battery and EV charging systems?
Yes, automatic aerosol fire extinguishers are widely used for battery storage systems, UPS cabinets, energy storage units, and EV charging station control panels. Their fast automatic activation helps reduce fire risks in enclosed electrical environments.
